HSF-408S Cassette Single Facer for Quick Change Roller From China Dpack
Machine technical parameter:
Machine design speed: 250m/min
Machine working speed: 200~230m/min
Machine paper working width: 2200mm

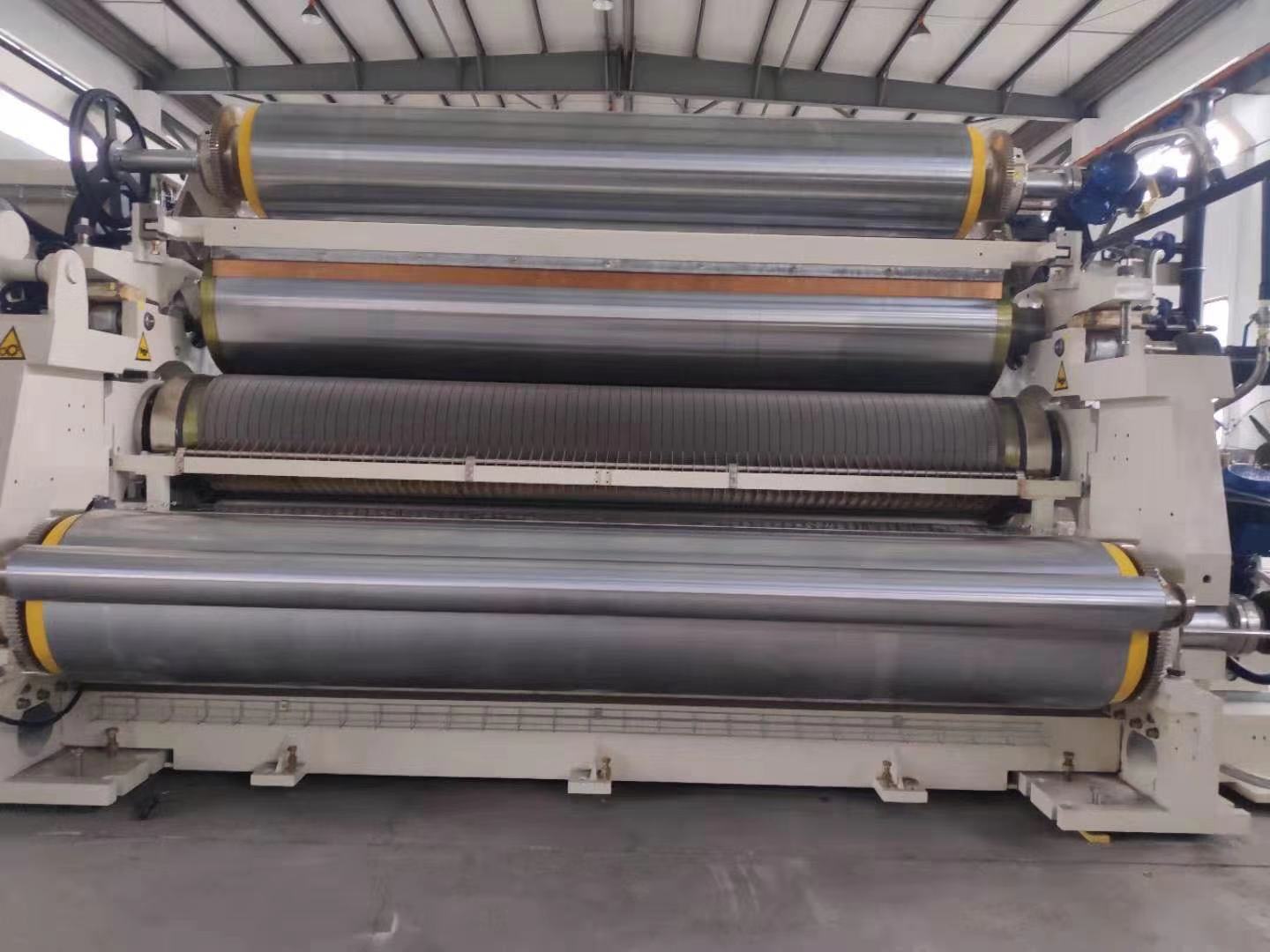

Corrugated roller diameter 408mm, lower corrugated roller diameter 325mm,the material is 48CrMo alloy steel
Surface making tungsten carbide treatment
Pressure roller diameter 500mm
Glue roller diameter 315mm
Doctor roller diameter 160mm
Preheater roller diameter 450mm
Main components brand:
| Components Name | Brand |
| Corrugated roller | Shanghai RMM |
| Glue roller and doctor roller | HAILI |
| Fan | Taiwan |
| Pneumatic system | Taiwan seven ocean brand |
| Pre hearer cylinder | Chinese brand |
| Rotary joint | Johnaon Wuxi produce |
| High temperature grease | Addeca WL supper 22 |
| Main bearing | NSK |
| Main electrical | Schneider |
| Button | Schneider |
| Main motor | TECO TAIWAN |
| Reducer motor | taiwan brand |
| PLC | Taida |
| Touch screen | Taida |
Machine Description:
Single facer is design for producing single-face corrugated paper, the medium process into wave-paper, and past glue
on the top of flutes, stick with liner become into single-face corrugated paper.
Machine function:

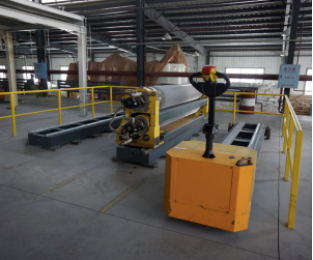

*This machine is cassette type design, easy and quick to change flute, the change corrugated roller time very short
*Main drive adopt converter control, sync belt drive, noise lower and running stable
*Pressure roller adopt dynamic design, make the cardboard indentation is light, the surface is more flatten
*Pressure roller adopt electrical adjust the clearance and show the value
* Glue unit clearance control by electrical, show the value
* With steam shower system
* Pre heater roller with Auto rotary function, electrical wrap angle
* According to the speed PLC automatic control glue thickness
*Corrugated roller is positioned under the pressure roller, it will be reduce the machine center of gravity and reduce
vibration
*Glue unit adopt independent driver the whole unit can be movable, easy to clean and repair,pneumatic motor control
glue plate
* Corrugated roller flute can be choose B,C (Tungsten carbide roller are optional)
* Adopt inner suction type corrugated roller, so the cardboard will be more flattening
*Corrugated roller, pressure roller, glue roller ,all adopt pneumatic control
| Design speed: | 300m/min | Working width: | 1400mm-2500mm |
| Flute roller diameter | Φ 408mm | Pressure roller diameter | Φ 500mm |
| Glue roller diameter | Φ 318mm | Doctor glue roller diameter | Φ160mm |
| Condition: | New | Automatic Grade: | Automatic |
| Warranty: | 1 Year | Country of origin: | Hebei,China
|
