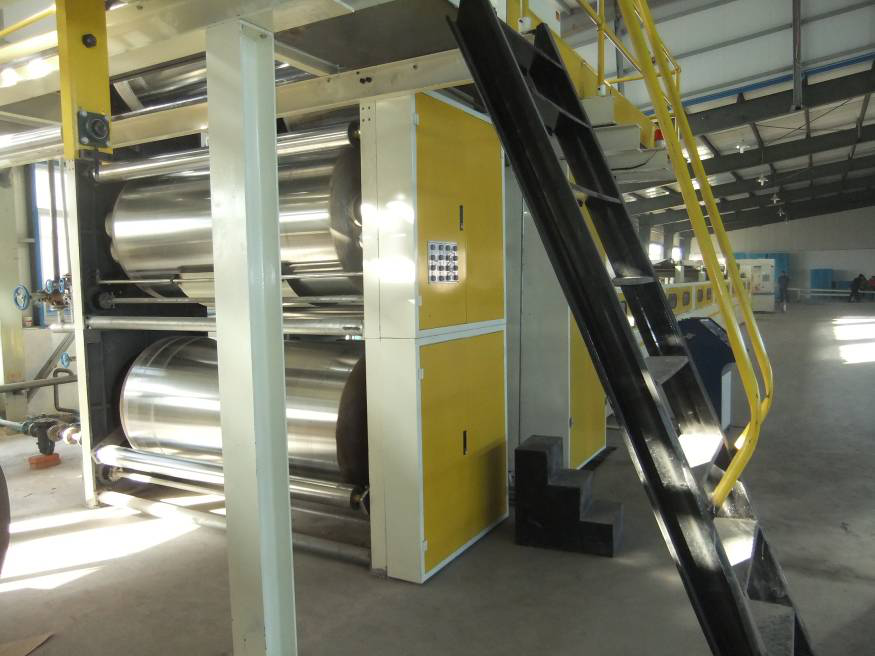

Dpack corrugator Professional MH-900T 1.5kw Power Duplex Pre Heater 50Hz Frequency manufacturing process

Name: Dpack corrugator Professional MH900T 15kw Power Duplex Pre Heater 50Hz Frequency manufacturing process
Brand: Dpack
Price: 1 USD

Brand Name : Dpack

Model Number : MH-900T

Certification : IOS9001

Place of Origin : China Hebei Dongguang

MOQ : 1 Set

Price : Negotiate

Payment Terms : L/C, T/T

Supply Ability : 1 Set/Month

Delivery Time : According to product

Packaging Details : Wooden case or wrapping film

Pre-heater Roller Diameter : ￠900mm

Working width : 2200mm

Angle adjustment range : 60~270 degree

Steam temperature : 150～200℃

Steam consumption : 0.35～0.45t/h

Steam pressure : 0.8～1.3MPa

Contact Now

Professional MH-900T 1.5kw Power Duplex Pre Heater 50Hz Frequency

Technical Parameter

Working width	2200mm
Pre-heater Roller Diameter	1￠900mm
Angle adjustment range	60~270 degree
Steam temperature	150～200℃
Steam consumption	0.35～0.45t/h
Steam pressure	0.8～1.3MPa
Total power	1.5kw
Working power	Voltage 380V Frequency 50Hz
Dimension	3600mm×1300mm×2400mm(L×W×H)

Dpack corrugator Professional MH-900T 1.5kw Power Duplex Pre Heater 50Hz Frequency manufacturing process

Characteristic

* The surface of the rolls are polished and plated with chrome.Smooth and durable.

* Electric motion adjust of the dimension of per-heater, and the range of adjustment:60-270 degree.

* Per-heater roller professional manufactured, consistent with national safety standards for pressure vessels.

* Pre-heater roller and paper guide roller are plated.

* Electric adjustment wrap angle, adapt to different paper and speed.

Raw materials and purchased parts

* Both sides of panel material:HT250 casting Origin:Hebei

* Guide paper roller material: 20 # steel Origin:Bao steel

* Pre-heater roller material: 20Gsteel,Wall thickness 20mm Origin:Ji steel

* Main bearings:Made in Ha, Wa, Luo . With seat bearing made in Jinrun, Zhejiang

* Steam rotary tie-in: made in Yuquan, Quanzhou

* Metal hose:made in Yuquan, Quanzhou

* Delivery valve: made in Shanghai

* Decelerate rate100:1 Short-term work Made in Zhejiang
