RS-1500H Hydraulic Mill Roll Stand, Material CastI Iron,Has Multipoint Brake
RS-1500H Hydraulic Mill Roll Stand
| Automatic level | Fully automatic | Working width | 1400-2500mm |
| Speed | 150-220m/min | Material | Cast iron |
| Drive type | Electric, Hydraulic | Voltage | Determined according to client’s voltage |
| Weight | 1800 type 3.8T 2200 type 4T | Size | 4450 × 1600 × 1650 (length * width *height) 1800type 4850 × 1600 × 1650 (length * width * height) 2200 type |
| Power type | 4.0kw | Tension control | Manual operation, Automatic |
| Use for | 3/5/7 ply | Maximum support weight | 3T |
| Maximum paper roll size | 1500mm | Color | RAL1013 |
| Packing type | Overall packing | Certification | IOS9001 |
Raw Materials and Outsourcing Standard Parts
| Name | Brand | Material | Origin |
| Both sides of the wall board, arm clamping | | Q235 steel plate, HT200 casting | Hebei China |
| Support spindle | | High quality thick wall seamless steel pipe | Chengdu China |
| Main beam connection channel steel | Anshan Iron and Steel Group | 20 # steel Width 300mm | Anshan China |
| Hydraulic pressure station | Tianyuan hydraulic pressure | | Shandong zaozhuang |
| Hydraulic cylinder | |
| Hydraulic high pressure pip | |
| Magnetic valve | |
| Air cylinder | Tianyuan | | Shandong zaozhuang |
| Pneumatic component | AIRTAC | | Taiwan |
| Electric appliance | CHINT ABB or Schneider | | Zhejiang,China,European brands |
| Bearing | Harbin | | Harbin etc |

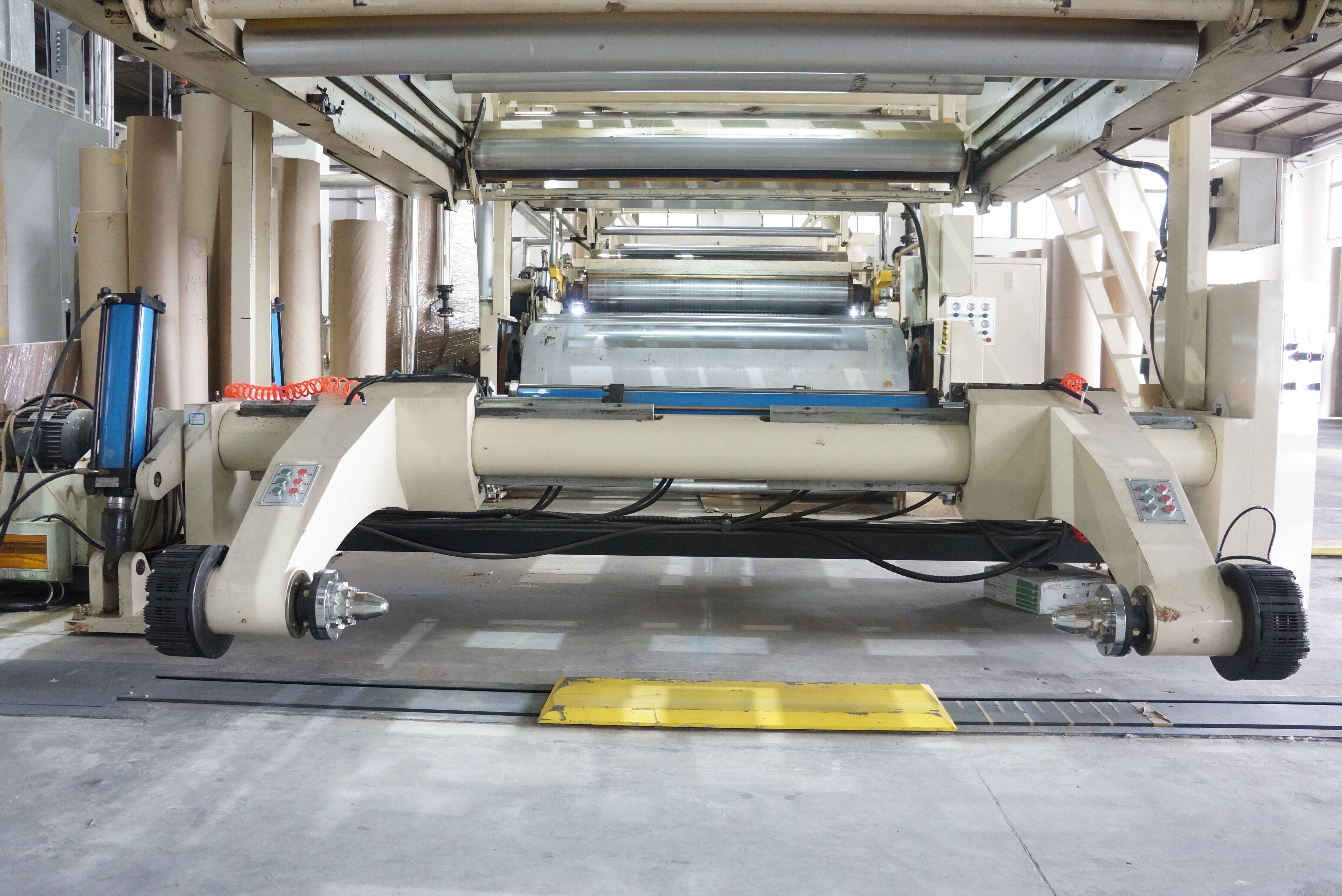

Hydraulic mill roll stand arm :
Hydraulic mill roll stand side face:

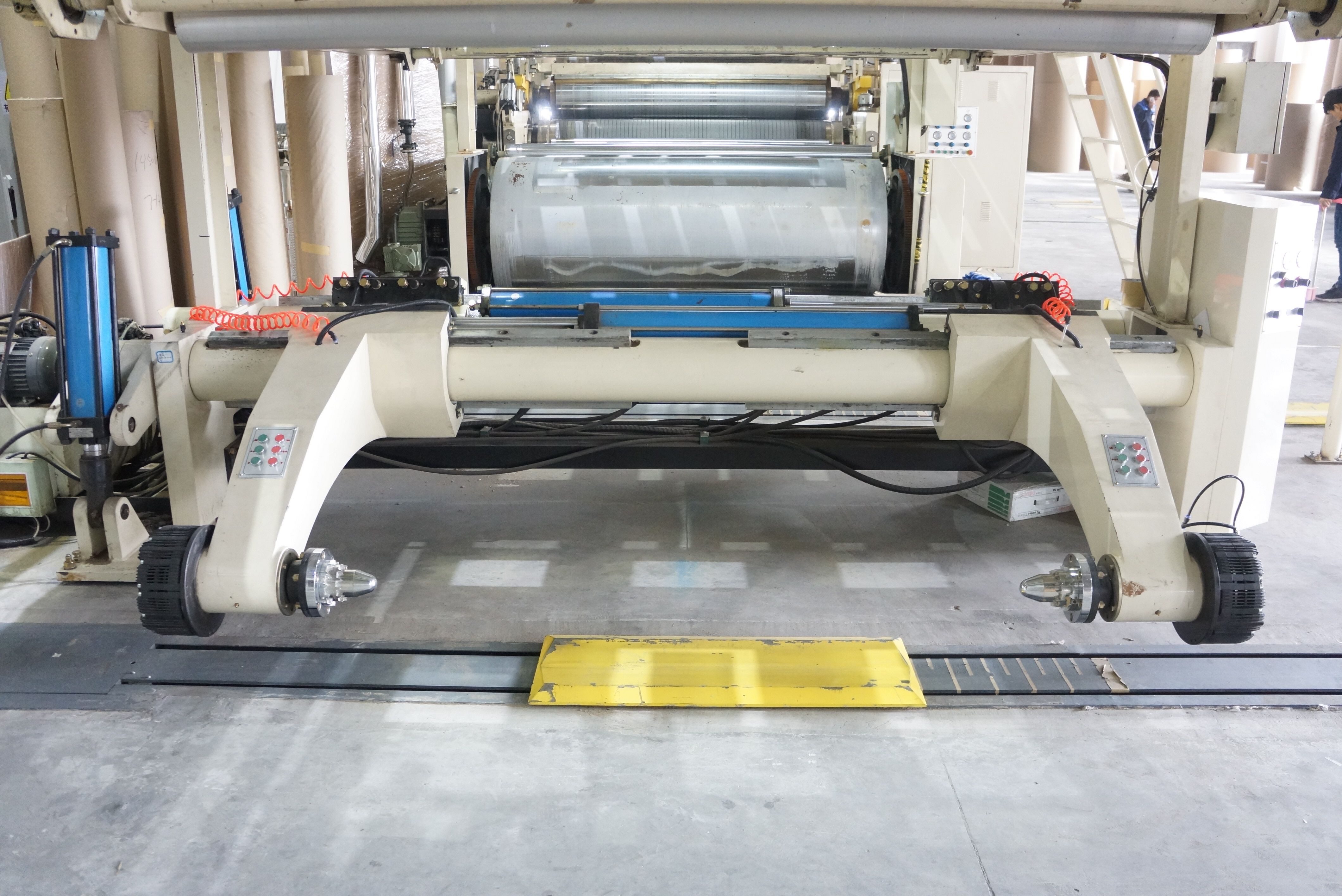

Arm down:
Upward view:
Multi-point brake serrated chuck:
When they working:
Characteristic
*Symmetry structure could install two bundles real paper at the same time, and change the paper without any stop.
*Adopt hydraulic drive that could make the real paper lift-lower, clamp and release and move.
*Adopt pneumatic strain to adJiust the real paper.
*Expanding clips design.
*Tension control by pneumatic brake system, manual controlled and also can be controlled by splicer.
Usage:
*The machine is used to set the raw paper up and fixed in the air, the machine that supplies raw paper to production.
*Hydraulic control of the lifting and lowering, clamping and releasing, right-left movement.
*Pneumatic control of the web tension.Expand chuck or tooth chuck is optional.
*Motor name:three-phase asynchronous motor
*Motor use:hydraulic pressure station
Raw materials and purchase in parts:
*Stand main bearing adopt:High quality thick-walled seamless steel pipe. Origin: Chengdu
*Two side wall plates and arms adopt: Q235G/HT250 casting Origin: Hebei
*Main beam like channel steel: 280mm Origin: An steel
*Bearing:made in Ha, Wa , Luo .
*Electrical device:made in Chint, ZheJiiang.
*Hydraulic: Tianyuan Origin: Zaozhuang, Shandong
